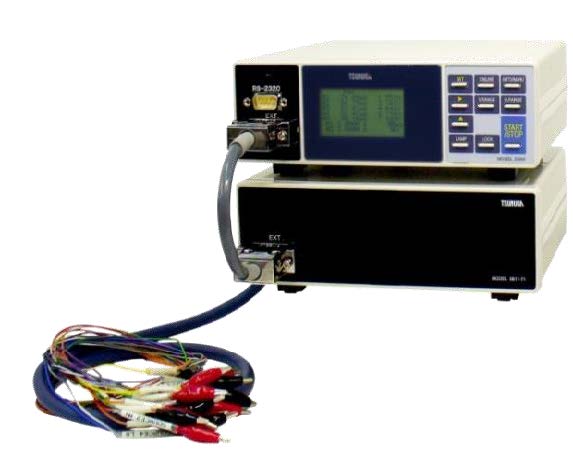

AC MΩ Meter with 20 CH Scanner 356M

· A compact sized AC mΩ with scanner
· It can measure up to 40 CHs with expansion unit 5811-71.
· Measured data can be transferred to PC by using attached software.

INQUIRY

Details

□ AC mΩ meter with max. 40CH extension
□ Resistance range: 30mΩ / 300mΩ / 3Ω
□ Open terminal voltage: 20mV peak or less
□ Enables to measure cell voltage and resistance of rechargeable batteries and fuel cells
□ 2 outputs of upper comparison judgment

■ Model Designation

Main unit

Model	No. of CH
356M-05	5CH
356M-10	10CH
356M-15	15CH
356M-20	20CH
356M-05	5CH

Scanner extension unit

Model	No. of extended CH
5811-71-05	5CH
5811-71-10	10CH
5811-71-15	15CH
5811-71-20	20CH

■ Measuring Range

□ Resistance Measurement

Measuring Range ※1	30mΩ	300mΩ	3Ω
Resolution	1μΩ	10μΩ	100μΩ
Measuring Current	7.4mA	1mA	100μA
Accuracy ※2	±(0.5% of rdg. +8 digit)
Open Terminal Voltage	Less than 20 mV peak (with OFF function)

※1: All CH, the same range
※2: Specified at 23 ℃ ± 5 ℃, 45 to 75 % RH

□Voltage Measurement

Measuring Range ※1	±5V	±50V
Resolution	100μV	1mV
Accuracy ※2	±(0.05% of rdg.＋5 digit)

※1: All CH, the same range
※2: Specified at 23 ℃ ± 5 ℃, 45 to 75 % RH

Product catalogue is available upon request.
